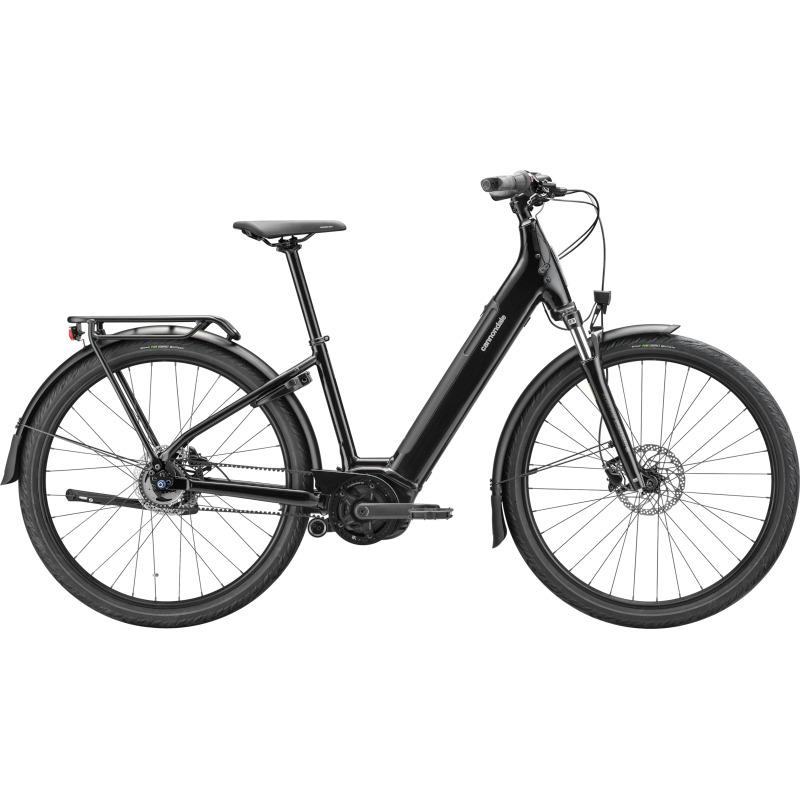

Electric bike Mavaro 4 LSTH Shimano Nexus

Product Specifications

Frame: Mavaro, SmartForm C2 Alloy, removable 500Wh battery in the down tube, integrated front light, tapered head tube, internal cable routing, 135mm QR axle spacing, IS disc mount, motor protection

Fork: SR Suntour Mobie A32, 63mm travel, spring with preload adjuster, lockout system, crown light mount, 44mm offset

Wheels: Alloy, double wall, 32 holes, internal width of 25mm, disc specific

Freewheels: (F) Shimano TC500, 15x110mm thru axle / (R) Shimano Nexus 5, internal gear hub, 5 speeds

Spokes: Stainless steel, 14g

Tires: Continental eContact Plus, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S)

Pedals: Cannondale Fitness

Crank: Gates Bosch E-bike, with 46 tooth chainring

Chain: Gates CDC carbon belt drive

Rear Sprockets: Gates CDC, 34 teeth

Rear Derailleur: Shimano Nexus 5-speed internal gear hub

Shifters: Shimano Nexus Revoshift, 5-speed twist shifter

Handlebar: Cannondale Urban Ergo Bar, 6061 alloy, 25mm rise, 35° sweep, 0° rise, 680mm

E-Bike Motor Unit: Bosch Active Line Plus, Smart System

Grips: Ergon GC10

E-Bike Battery: Bosch PowerTube, 500Wh

Stem: Cannondale 3 with Intellimount, alloy, 31.8mm clamp, 70mm, +6°, with SP Connect SPC+ stem mount

E-Bike Display: Bosch Purion 200

Headset: Semi-integrated, tapered; 1-1/8"-1-1/2"

E-Bike Charger: Bosch 2A

Brakes: Shimano MT200 hydraulic disc brakes, 180/160mm RT30 rotors

Saddle: Royal Nuvola

Seat Post: Cannondale 4, 6061 alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (XL)

Size: SM, MD, LG

Extras: integrated front light in the head tube, Axa Compactline 35E front light, Axa Blueline rear light, Abus frame lock (key matched to battery lock), Tubus rear rack (20kg, compatible with Racktime SnapIt 1.0), full-coverage mudguards
