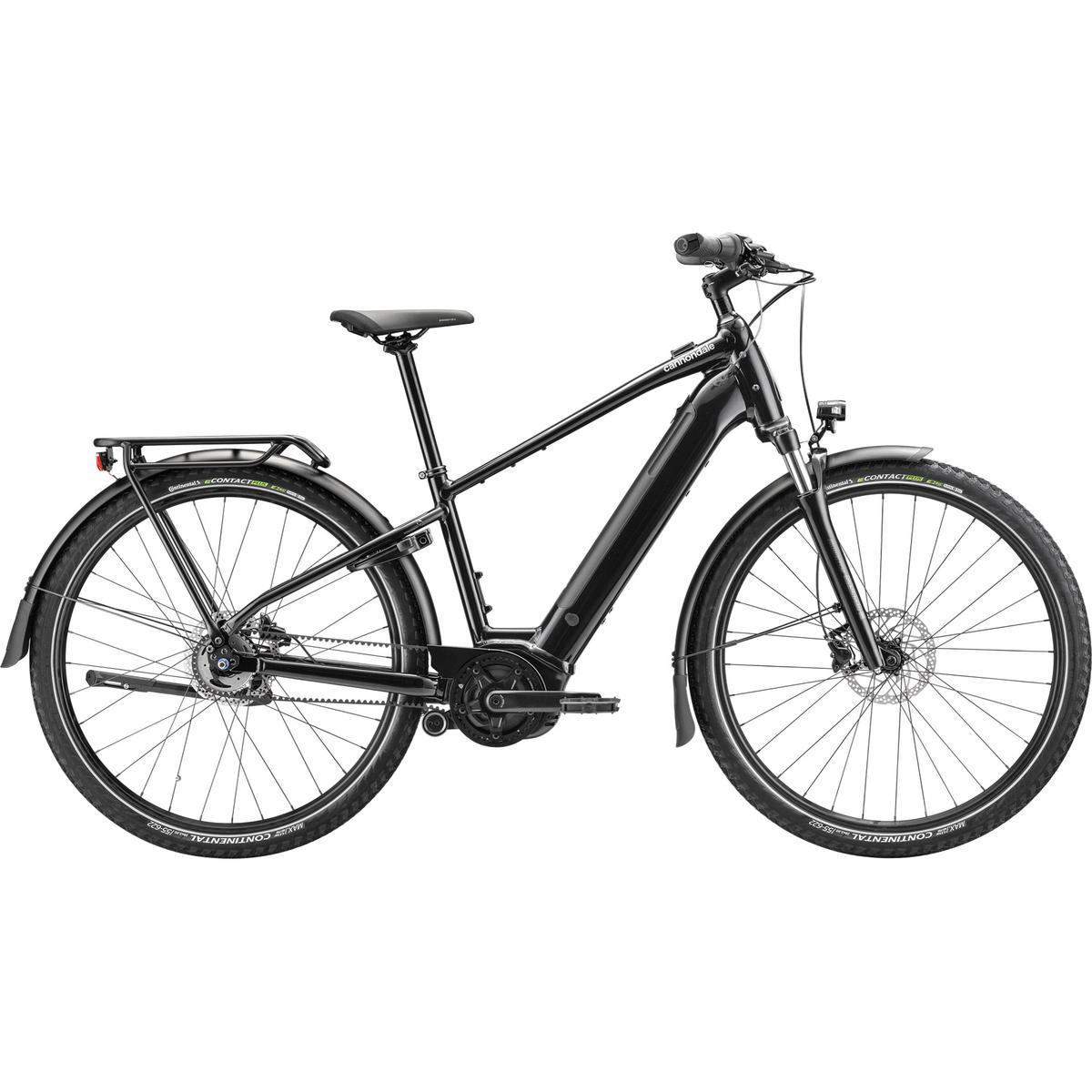

Electric bike Mavaro 4 Shimano Nexus

Product Specifications

Frame: Mavaro, SmartForm C2 alloy, removable 500 Wh battery in the down tube, integrated front light, tapered head tube, internal cable routing, 135 mm QR hub spacing, IS disc mount, motor protection

Fork: SR Suntour Mobie A32, 63 mm travel, spring with preload adjustment, lockout, crown headlight mount, 44 mm offset

Rims: Alloy, double wall, 32 holes, internal width of 25 mm, disc specific

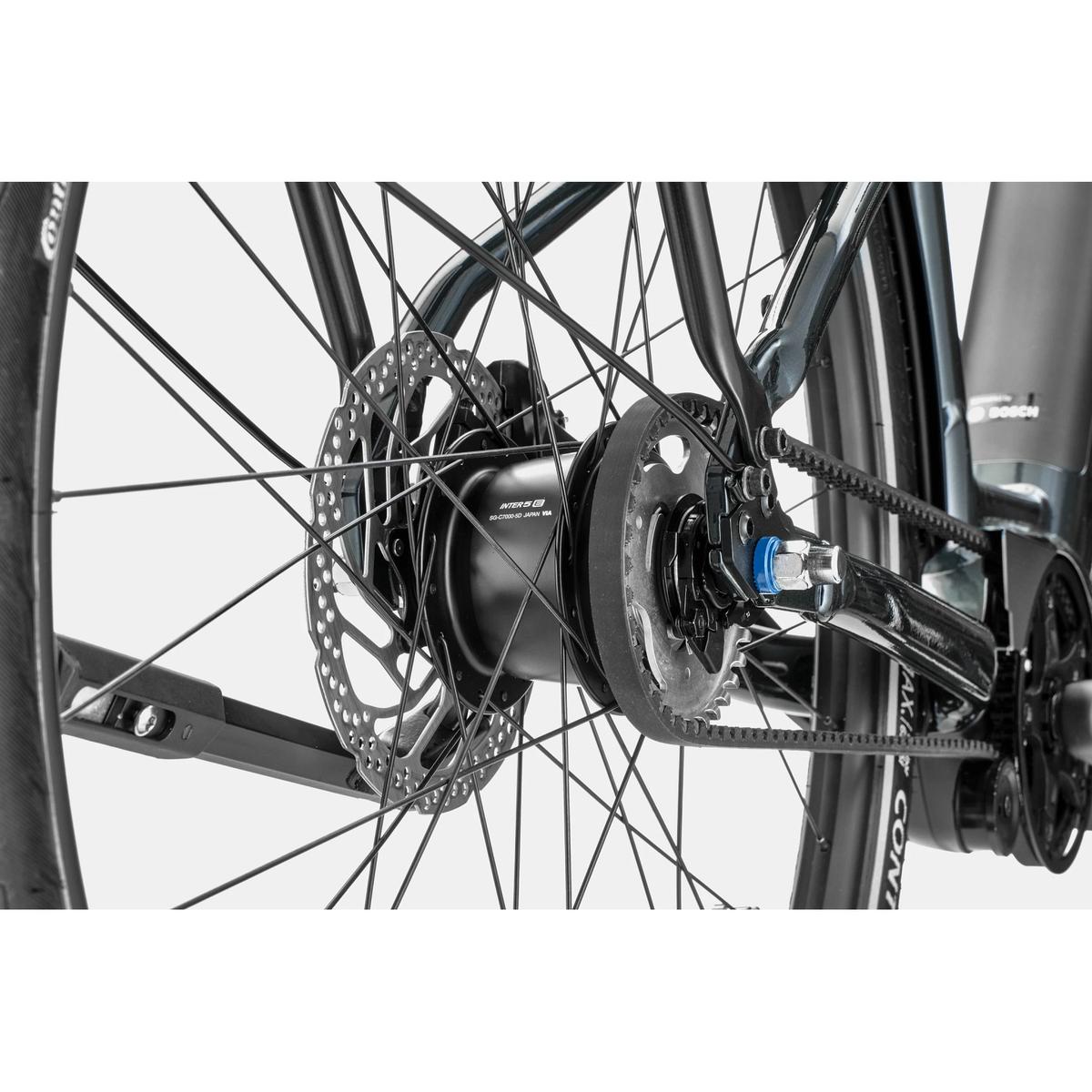

Hubs: (F) Shimano TC500, 15x110 mm thru axle / (R) Shimano Nexus 5, internal gear hub, 5 speeds

Spokes: Stainless steel, 14g

Tires: Continental eContact Plus, 29x2.2" 55-622 (M, L, XL), 27.5x2.2" 55-584 (S)

Pedals: Cannondale Fitness

Crankset: Gates Bosch E-bike, with 46 tooth sprocket

Chain: Gates CDC carbon drive belt

Rear Sprockets: Gates CDC, 34 teeth

Rear Derailleur: Shimano Nexus 5-speed internal gear hub

Shifters: Shimano Nexus Revoshift, 5-speed twist shifter

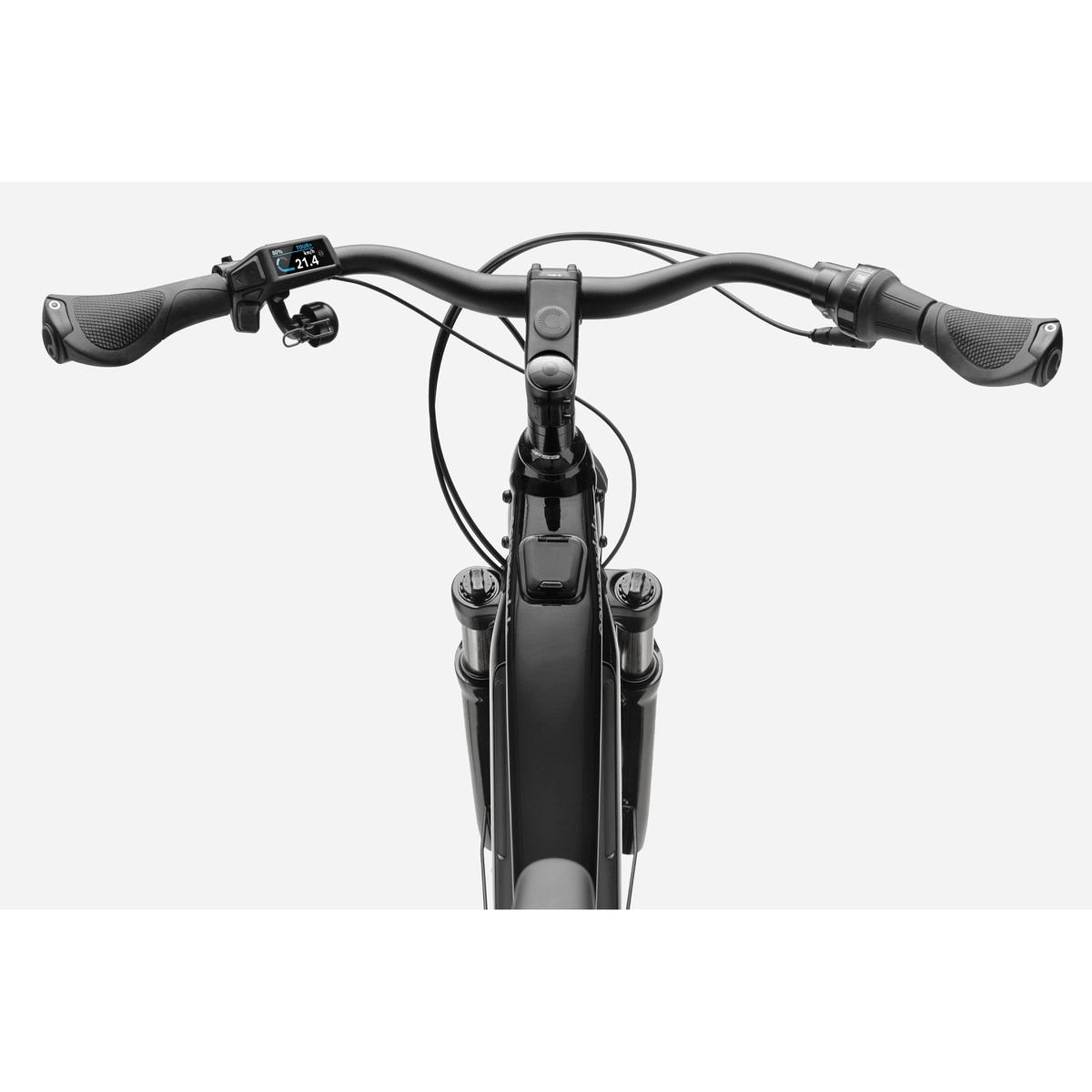

Handlebar: Cannondale Urban Ergo Bar, 6061 alloy, 25 mm rise, 35° sweep, 0° rise, 680 mm

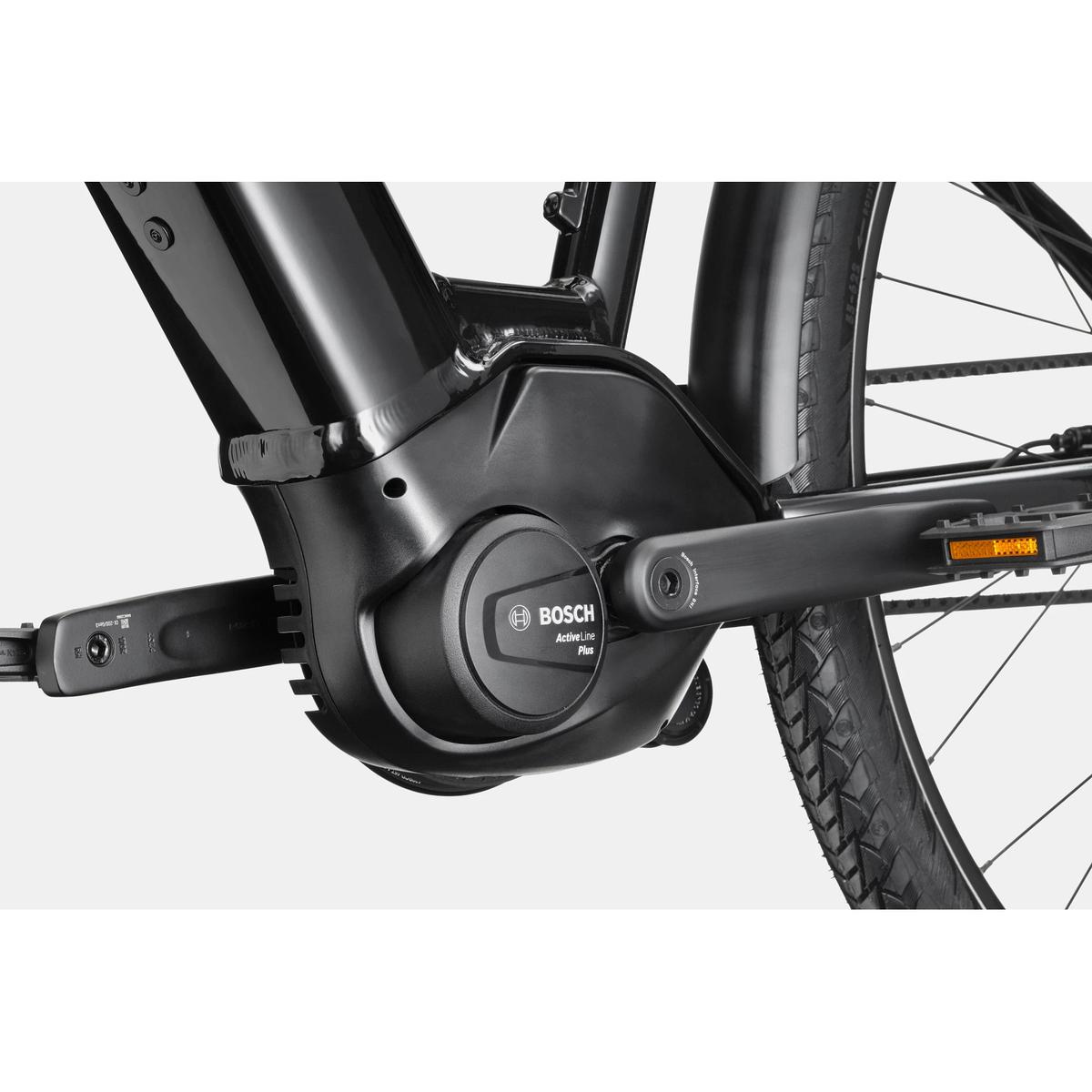

Electric Drive Unit: Bosch Active Line Plus, Smart System

Grips: Ergon GC10

Electric Battery: Bosch PowerTube, 500 Wh

Stem: Cannondale 3 with Intellimount, alloy, 31.8 mm clamp, 70 mm, +6°, with SP Connect SPC+ stem mount

Electric Display: Bosch Purion 200

Derailleur: Semi-integrated, tapered; 1-1/8"-1-1/2"

Electric Charger: Bosch 2A

Brakes: Shimano MT200 hydraulic disc, 180/160 mm RT30 rotors

Seat: Selle Royal Nuvola

Seat Post: Cannondale 4, 6061 alloy, 31.6, 300 mm (SM), 350 mm (MD), 400 mm (XL)

Sizes: SM, MD, LG, XL

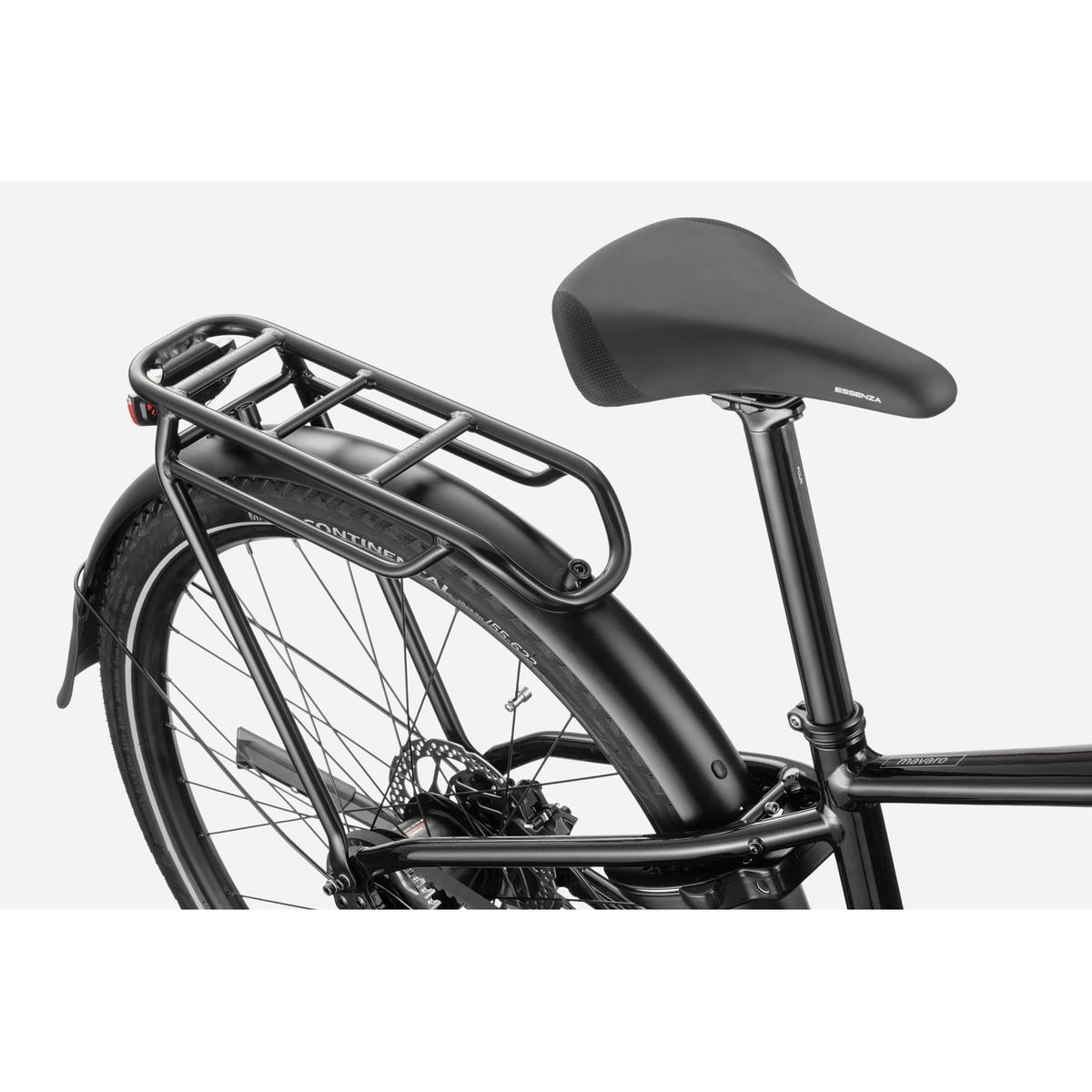

Accessory(ies): Integrated headset front light, Axa Compactline 35E front lamp, Axa Blueline rear lamp, Abus frame lock (key matched to battery lock), Tubus rear rack (20 kg, Racktime Supernova M99 Mini Pro-45 High Beam, Supernova M99 Tail Light, Supernova Horn, Tubus Rack - compatible with Racktime SnapIt 1.0, full fenders).
