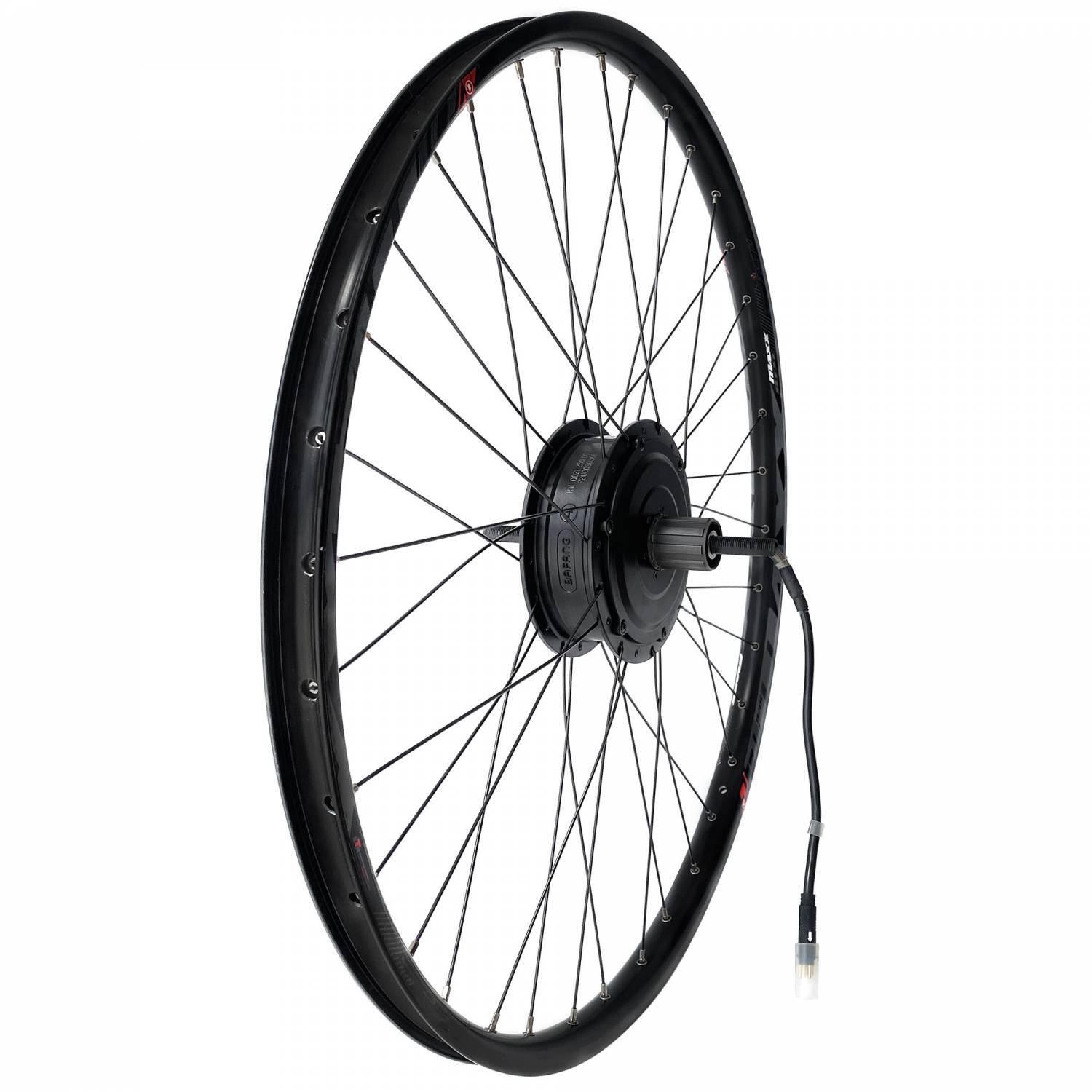

Bike wheel T. Maxx 36H - Bafang H400B 36V 250W

• Rear wheel for E-Bike 29" with integrated motor.
• Rim Mach1 MAXX - 36H - 29" (622x25C).

MOTOR

The Bafang H400B rear-wheel motor provides reliable support with 250 or 350 W of power and a maximum torque of 45 Nm. Solid and efficient, this motor considerably improves riding comfort and is suitable for eTour and eCity bikes. Compatible with sprockets and disc brakes.

• Position: rear motor
• 36 V - 250 W
• Wheel diameter (inches) 20/26 / 27.5 / 28
• Gear drive design
• Rated voltage 36/43/48
• n0 (rpm) 325 ; 245
• Rated power 250
• nT (rpm) 290 ; 205
• Maximum torque 45 N.m
• Power ≥ 80
• Operating temperature -20-45 ℃
• Weight 3,3 Kg.
• Disc brake
• Installation width 138
• Max. diameter 158.5
• Cable connection via axle, right-hand
• Cable length (mm), connection type 250 G9.1
• Sprocket for 6/7/8/9 speeds.
• Radii 36H * 12G
• Speed (impulsion/rev) 6
• Speed ratio 1:5
• Tests and certifications: IP X5 code and ROHS / CE certifications.
• Wheel size: 29".
• Wheel position: rear
• For tires: tube-type
