Description

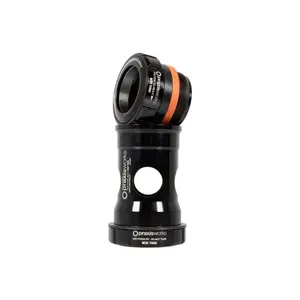

Press-in bottom bracket, compatible with BB30 42 / PF30 46 mm diameter and 73 mm width
- Compatible with BB30 42mm / PF30 46mm crankset with the adapter.
- Compatible crankset Praxis M30 Thru (30mm on both sides) / Race Face Cinch / Rotor Rex
- Additional information PDF at the bottom of the page
- Part number: 73-4101R
Does your bike creak when you press hard on the pedals, has the crankset lost its smoothness or has it become loose? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear.
Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your crankset and your frame, so the first thing to do is to identify which crankset you want to fit in which frame ?
Internal case diameter*Box width*MountingStandardRecommended bottom bracket axle**34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm
We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame.** This compatibility is given as an indication, there are also boxes "adapters" which allow to mix the standards.
Specifications:
- Case width: 73
- Case standard: PressFit 30 (PF30) BB30
- Internal diameter: 42 46
- Bearing quality: steel
- Bottom bracket axle: 30 mm
- Crankset standard: Race Face Cinch (BB30 long axle)
