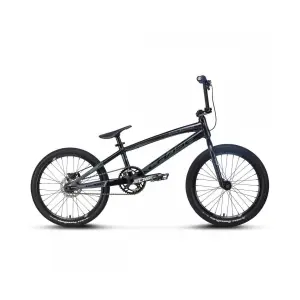

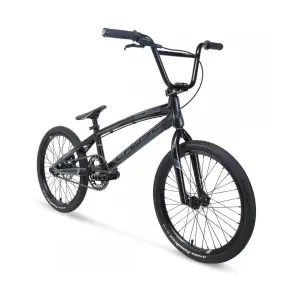

Chase Bike Edge Pro 2025

The all-new CHASE Edge is a BMX race-ready machine, perfect for riders looking to seriously get into BMX racing and take it to the next level.
Just when you thought it wasn't possible, the new Edge has been upgraded, now featuring Shimano hydraulic disc brakes (Junior size and above), all-new Chase 24 mm 2-piece alloy cranks (Expert XL and above), updated gear and crank sizes, a two-tone paint job and graphic design, and a closed rear dropout system with an integrated chain tensioner. The Edge frame also includes hydroformed 6061 aluminium tubes, triple-reinforced, with an integrated headtube. Other standout features of the Edge include 4130 chromoly fork and handlebars, double-wall rims with a three-engagement rear cassette, rear hub, and TIOGA tires. The combination of all these components undoubtedly makes the CHASE Edge one of the most advanced race BMX bikes available today.

The Chase Edge Complete bike features a disc-specific race frame with hydroformed and butted tubes, cable-activated disc brakes, an integrated chain tensioner/disc brake mounting system, Tioga tires, an Insight chainring, a triple-clutch cassette hub, a KMC chain, and a pivoting seat and seat post. With 10 bike sizes available, the Edge range offers a full selection of size options for just about any racer.

KEY FEATURES

FRAME: Top tube CHASE Edge Pro 20.5", triple-reinforced hydroformed 6061 T6 alloy, closed rear dropouts, integrated chain tensioner

FORK: CHASE Edge Pro, full Cr-mo, 1-1/8" head tube

STEM: CHASE Edge 50mm

HANDLEBAR: CHASE Edge 7.5"

HEADSET: Integrated sealed bearing

CHAINRING: INSIGHT 42T 4 Bolt BCD 104mm

CRANKSET: CHASE Edge 2-piece alloy 175mm

HUBS: CHASE Edge Pro 3/8" axle, sealed bearings, steel cassette body, precise triple clutch rear hub system with standard ISO disc brake (3-pawls triple angle engagement for 24T pawls), 16T sprocket.

RIMS: CHASE Edge 150 Double Wall 20"x1.50”, 32H front and rear.

TIRES: TIOGA PowerBlock 20"x1.85” front and PowerBlock 20"x1.60” rear.

BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm.

SEAT: CHASE Edge Pro Pivotal.

WEIGHT: 20.6 LBS / 9.37 KG WITHOUT PEDALS.

RIDER HEIGHT: 4′ 11.8” – 5′ 5.4” / 1M52 – 1M66.

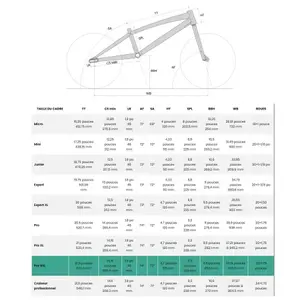

SIZE GUIDE

SPECIFICATIONS:

FRAME: Top tube CHASE Edge Pro 20.5", triple-reinforced hydroformed 6061 T6 alloy, integrated head tube, closed rear dropouts and chain tensioner system.

FORK: CHASE Edge Pro 1-1/8" head tube with tapered blades.

HEADSET: IS 42/42 1-1/8" integrated sealed bearing.
HANDLEBAR: Square CHASE 22.2 mm, 7.5" rise, 27" width, 11° back sweep, 3.5° up sweep.

GRIPS: INSIGHT C.O.G.S 130mm Alloy Clamps, Laser-etched logo, PVC end cap.

STEM: CHASE Edge 50mm 6061 T6 Alloy Laser-etched logo.
BB: Sealed Euro External BSA 24mm.

CHAINRING: INSIGHT 42 teeth 4 bolts 104mm 1/2"x3/32” 5mm Alloy ring.

CRANK: CHASE Edge 2-piece 24 mm axle alloy crank arms 175 mm with laser-etched logo, Cr-mo chainring bolts/nuts.

PEDAL: Pro Platform Canon 9/16" polished with gripping knobs, steel axle, ball bearing.

CHAIN: KMC Z1 narrow 1/2"x3/32”

SPROCKET: 16 teeth

FRONT HUB: CHASE Edge Pro, 3/8" axle, 32H, sealed bearing.

REAR HUB: CHASE Edge Pro ISO, 3/8" axle, 32H, sealed bearing, steel cassette body with 3-pawls triple angle engagement for 24T pawls.

SPOKES: Front 179 mm, Rear 173/174 mm, Gauge 14, Steel.

NIPPLES: 16 mm, gauge 14, brass.

FRONT RIM: CHASE Edge 150 Double Wall 32H 20"x1.50” Schrader valve.

REAR RIM: CHASE Edge 150 Double Wall 32H 20"x1.50” Schrader valve.

FRONT TIRE: TIOGA PowerBlock 20"x1.85” Wire Bead.

REAR TIRE: TIOGA PowerBlock 20"x1.60” Wire Bead.

TUBES: Schrader valve 20"x1.50”-1.75”.

BRAKES: Shimano Disc Brake Lever BL-MT200(R) Hydraulic, 140mm Adapter Configuration, with Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads and 140 MM Rotor.

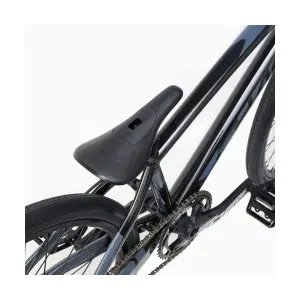

SEAT: CHASE Edge Pro Pivotal.

SEAT POST: Pivotal 27.2 x 250 mm alloy.

SEAT CLAMP: CHASE Edge QR Alloy 31.8mm.

CHAIN TENSIONER: Integrated with new locking disc adapter.
