Name: Frame Inspyre Concorde V3 - LTD
Brand: Inspyre
SKU: MAG8009425

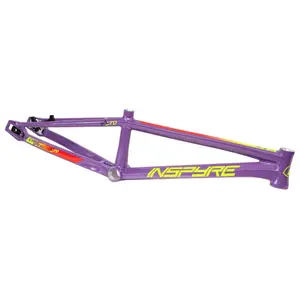

CONCORDE V3 FRAME

Discover the brand-new, limited-edition Inspyre Concorde V3 frame! In Flarer Purple/Blue LTD, Inspyre Bicycles steps out of its comfort zone with an unusual shade, available in ultra-limited.

Discover the all-new Inspyre Concorde V3 frame, the result of two years of intensive testing and development in close collaboration with the Inspyre team. Redesigned from top to bottom, it is one of the most advanced aluminum frames on the BMX Race market.

The Concorde V3 features all-new tubing throughout the frame, with the exception of the downtube. Every tube in this frame has been meticulously hydroformed to achieve the optimum balance between lightness, strength and aerodynamics. Attention to detail is evident in the innovative design of the intersection between the down tube, bottom bracket and chainstays. This intersection, the widest on a current BMX Race aluminum frame, is the result of precise engineering by the Inspyre team.

The generous cross-section and flowing transitions ensure optimum load distribution, creating a structure with exceptional lateral rigidity. This increased rigidity significantly improves pedaling efficiency, ensuring optimum power transmission to the drivetrain. By minimizing frame flex, the Concorde V3 maximizes energy restitution, offering an unrivalled riding experience on the BMX trails. The use of variable tube thicknesses represents a major advance, reducing the weight of the Concorde V3 without compromising its overall strength and rigidity. Thanks to this innovation and the new tubes, the Concorde V3 is now 15% lighter than its predecessor, the V2.

The aesthetics of the Concorde V3 have been meticulously crafted. This new model is distinguished by flat welds, offering an exceptional quality finish. As for the paintwork, no detail has been overlooked, with the application of under-varnish stickers adding an extra touch of refinement. Every element has been taken into account to ensure not only optimum performance, but also an elegant, well-groomed visual appearance.

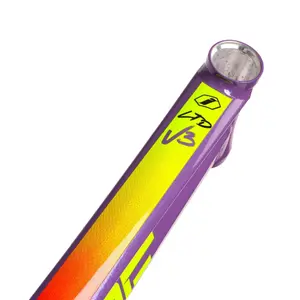

The all-new, CNC-machined hourglass-shaped headset brings an entirely new dynamic to the bike. In accordance with the IS 45 x 45 standard, we recommend the use of PRIDE RACING headset units, which perfectly match the shape of the head tube. The Concorde headsets remain low, measuring 110 mm for children and 115 mm for adults. Why is this so? To keep the cockpit as low as possible, for an aggressive stance at the start and on the track.

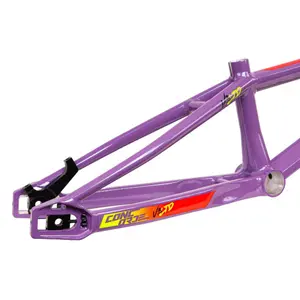

The new oversized rear chainstays offer increased rigidity, and our chainstay assembly with a wide bottom bracket further contributes to this robustness. The chainstays fit snugly over the full width of the bottom bracket to provide maximum lateral rigidity.

The Junior, Expert and Expert XL versions feature specific tubes adapted to the morphology of young riders, guaranteeing a bike that's less rigid and lighter than the adult version. After all, our young riders are lighter and less powerful, so why offer the same tubes and the same structure?

The SWELL rear dropout system has been completely redesigned to offer an enhanced user experience. SWELL V2 lugs offer a true 25 mm adjustment range. The internal 7075-T6 aluminum plates that make up the dropout remain in place even when you dismount the wheel, offering optimum user comfort during maintenance. The chain tensioning system uses two CNC-machined knurls, all mounted on a stainless steel axle. The disc mounting bracket is standard post-mounted for a 120 mm disc, but can be upgraded to 140 mm with a +20 mm extension. This bracket is supplied fromorigine for 10 mm axles, but we offer a specific kit for mounting wheels with 15 mm axles. What's more, this dropout is compatible with the latest ADS chain tensioner, allowing you to adjust your wheelbase whatever your development.

With this frame, Inspyre redefines performance standards at BMX Race, offering riders an exceptional platform to push their limits on the track.

SPECIFICATIONS :
