Electric bike Mavaro 1 LSTH

Product Specifications

Frame: Mavaro, low-step frame, SmartForm C1 alloy, removable 800Wh battery in the down tube, tapered head tube, internal cable routing, 135 mm QR hub spacing, rear disc brake mount, motor protection, integrated RackLock cargo rack and mudguard - compatible with RackTime SnapIt 2.0 and child seat

Fork: Cannondale HeadShok, 50 mm travel, Quad Cage needle bearings, coil spring, semi-open oil damping in double chamber, rear disc brake mount, 110x15 mm thru-axle

Rims: Alloy, double wall, 32 spokes, 25 mm internal width, disc-specific

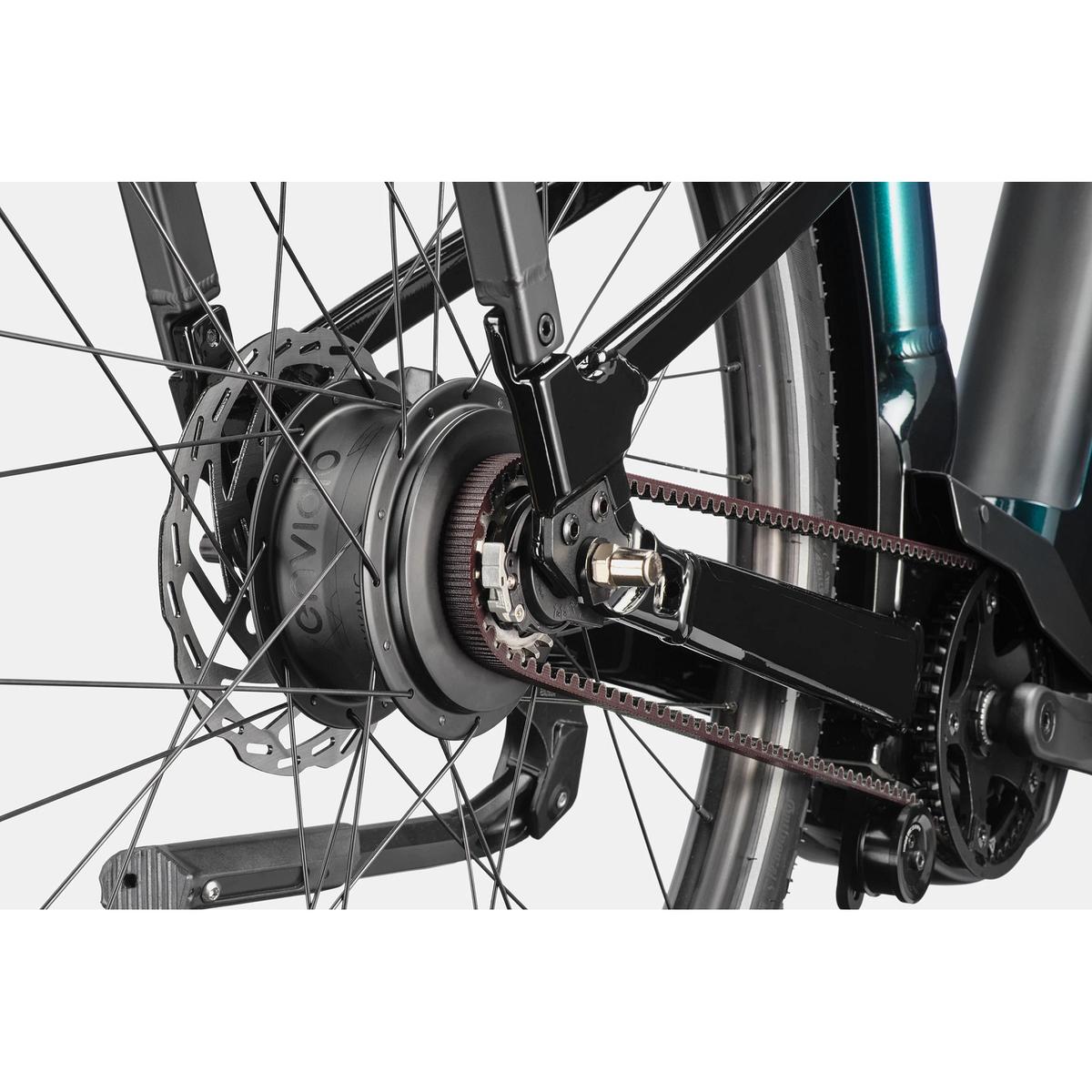

Hubs: (F) Shimano TC500, 110x15 mm thru-axle, centerlock / (R) Enviolo Trekking, continuously variable transmission, internal hub with wide range

Spokes: DT Swiss, stainless steel, 14g

Tires: Continental eContact Plus with reflective sidewalls 27.5x2.20" 55-584 (SM, MD), 29x2.20" 55-622 (LG, XL)

Pedals: Cannondale Fitness Alloy

Cassette: Gates Bosch E-bike, with 40 tooth sprocket

Chain: High-performance carbon traction band Gates CDX

Rear Lights: Gates CDX, 22 teeth

Derailleurs: Enviolo Trekking continuously variable controller, rotational style

Handlebar: Cannondale Urban Ergo Bar, alloy 6061, rise of 25 mm, 35° tilt, 0° rise, 680 mm

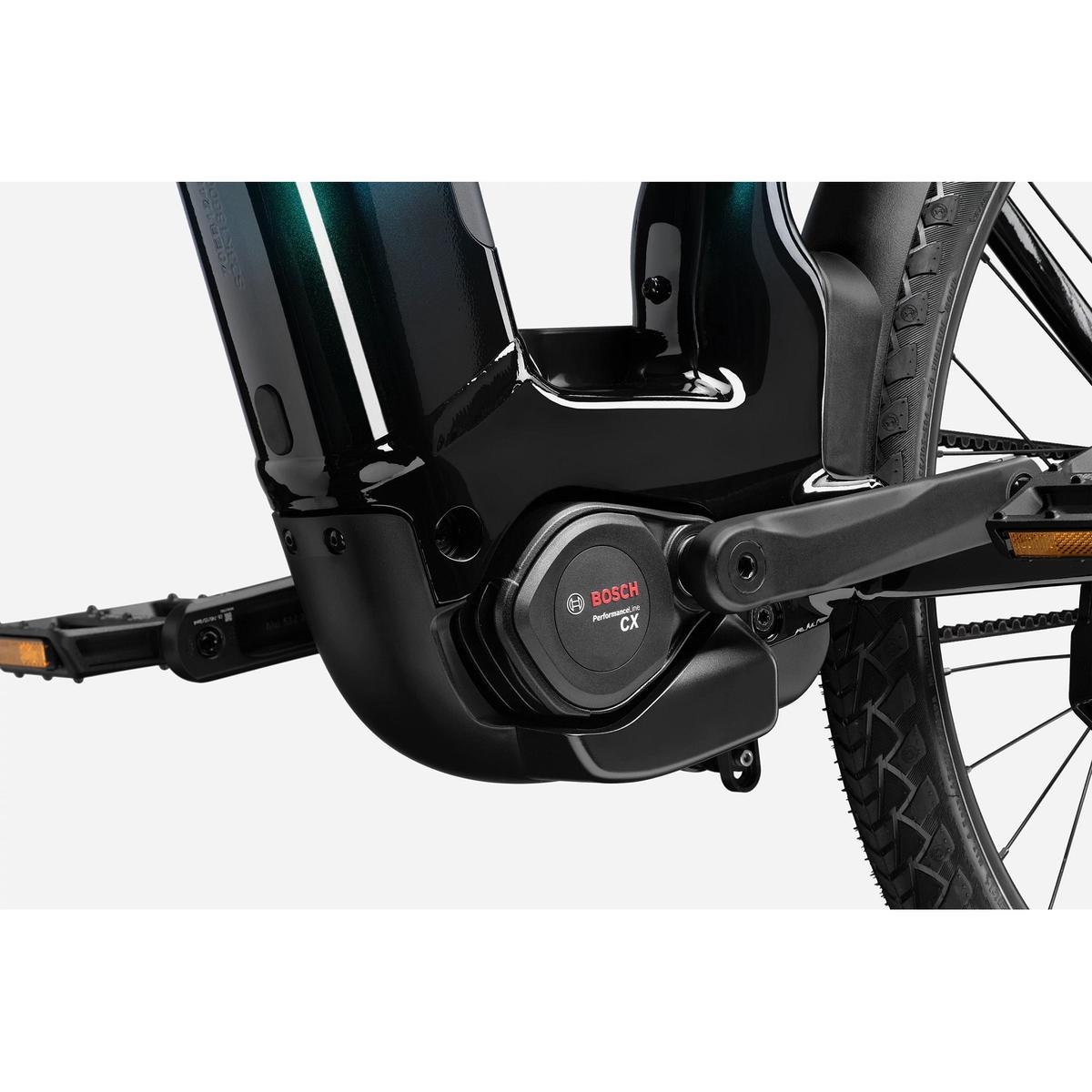

E-Bike Drive Unit: Bosch Performance Line CX 250W 2025

Grips: Ergon GC10

E-Bike Battery: Bosch PowerTube, 800Wh

Stem: Cannondale Urban with Intellimount, alloy, 31.8 mm clamp, 60 mm, +30°, Acros ICR, with SP Connect SPC+ stem mount and Kiox mount

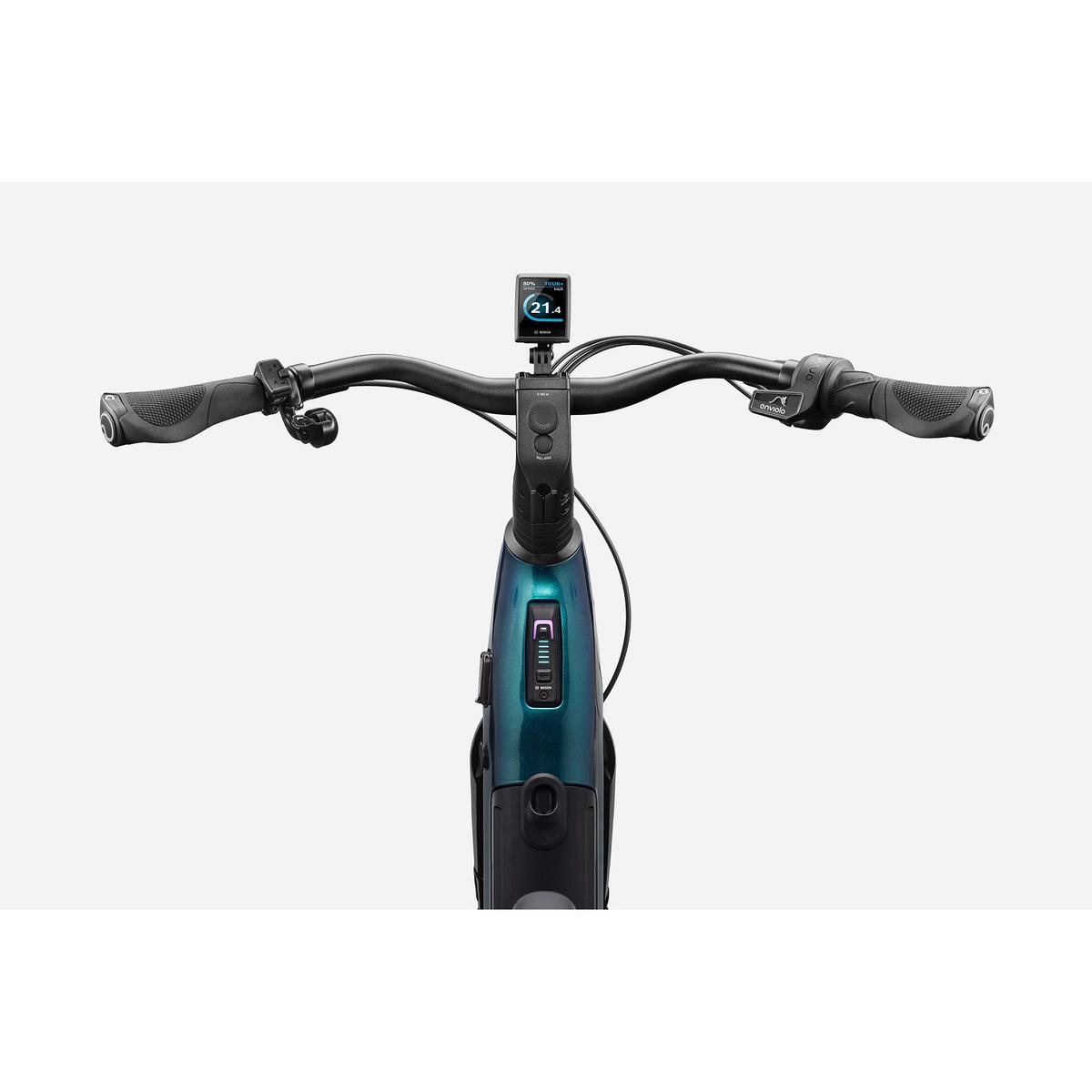

E-Bike Display: Bosch Kiox 300 with Mini remote and system controller

Headset: Acros, integrated cable routing, sealed bearing, tapered

E-Bike Charger: Bosch 4A

Brakes: Tektro HD-M530 Gemini, hydraulic disc with 4 pistons, 203 mm TR rotor (front), hydraulic disc with 2 pistons, 203 mm TR rotor (rear)

Saddle: Selle Royal Essenza

Seat Post: Parallelogram suspension, 31.6, 27 mm travel, 300 mm (S), 350 mm (MD), 400 mm (LG, XL)

Size: SM, MD, LG, XL

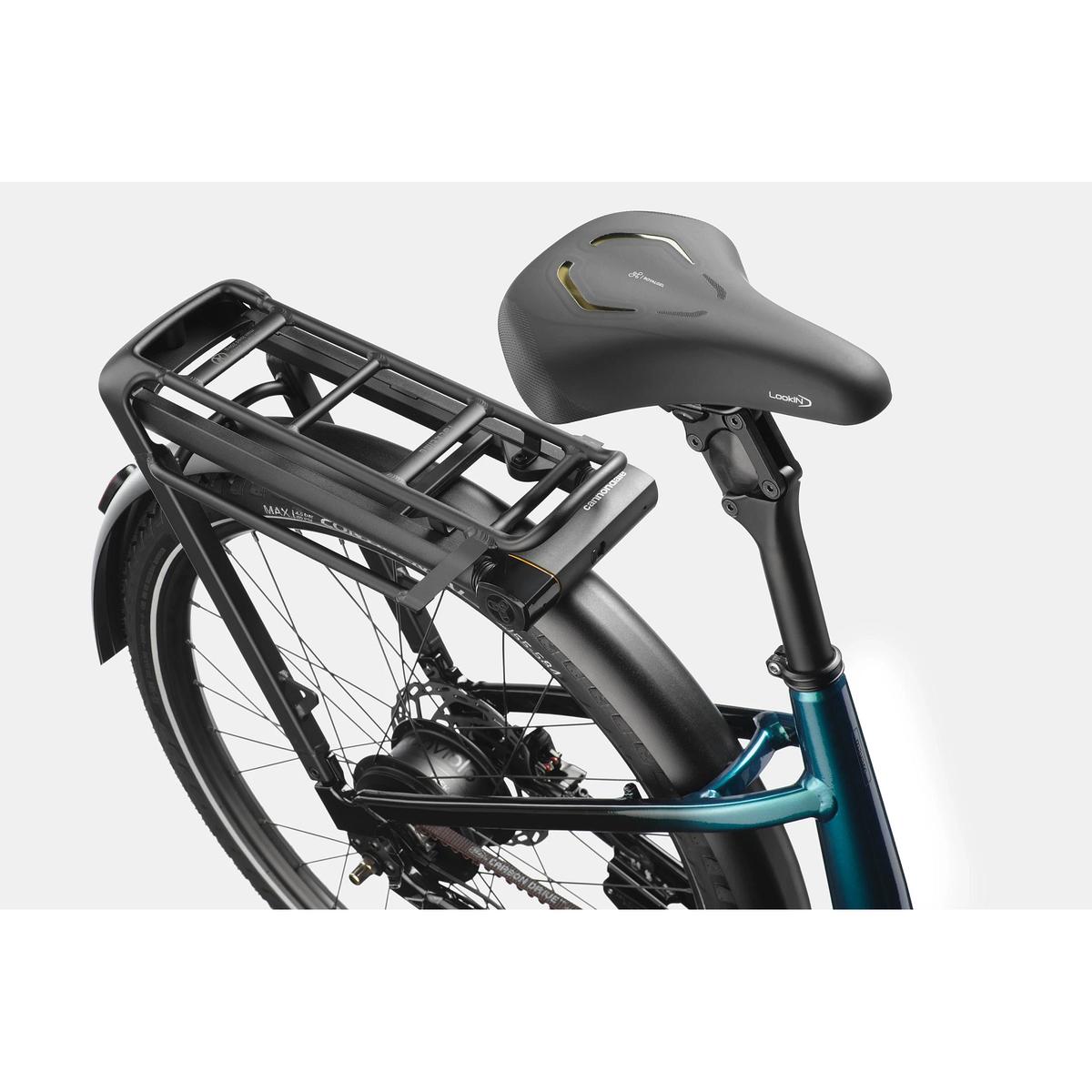

Accessories: Rear RackLock cargo rack (27 kg, compatible with Racktime SnapIt 2.0 and child seat), with integrated U-Lock (AXA, matching key with battery lock), front light Lezyne Foresite E350 and rear light SuperNova TL3-Z with integrated reflector, fully covering mudguard
