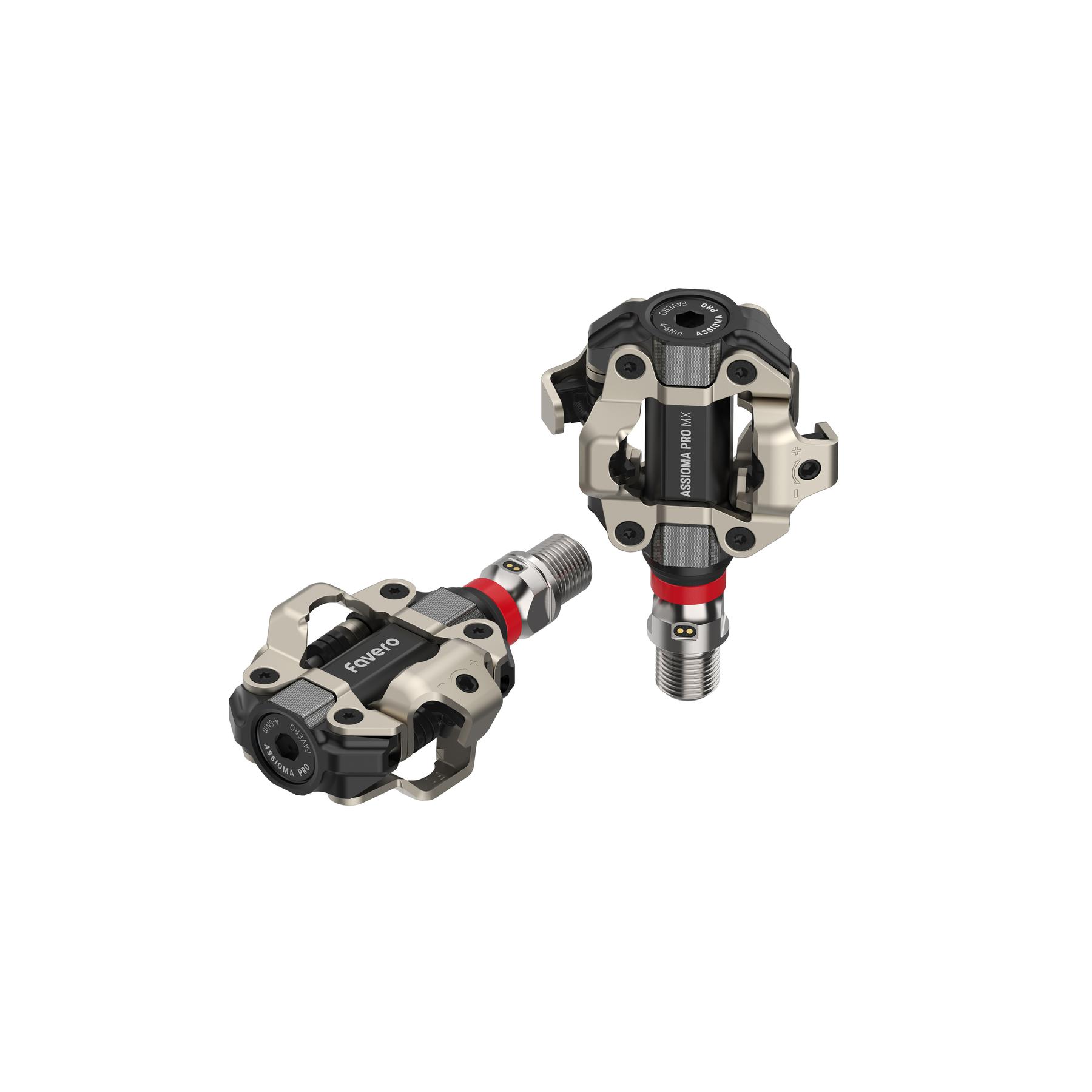

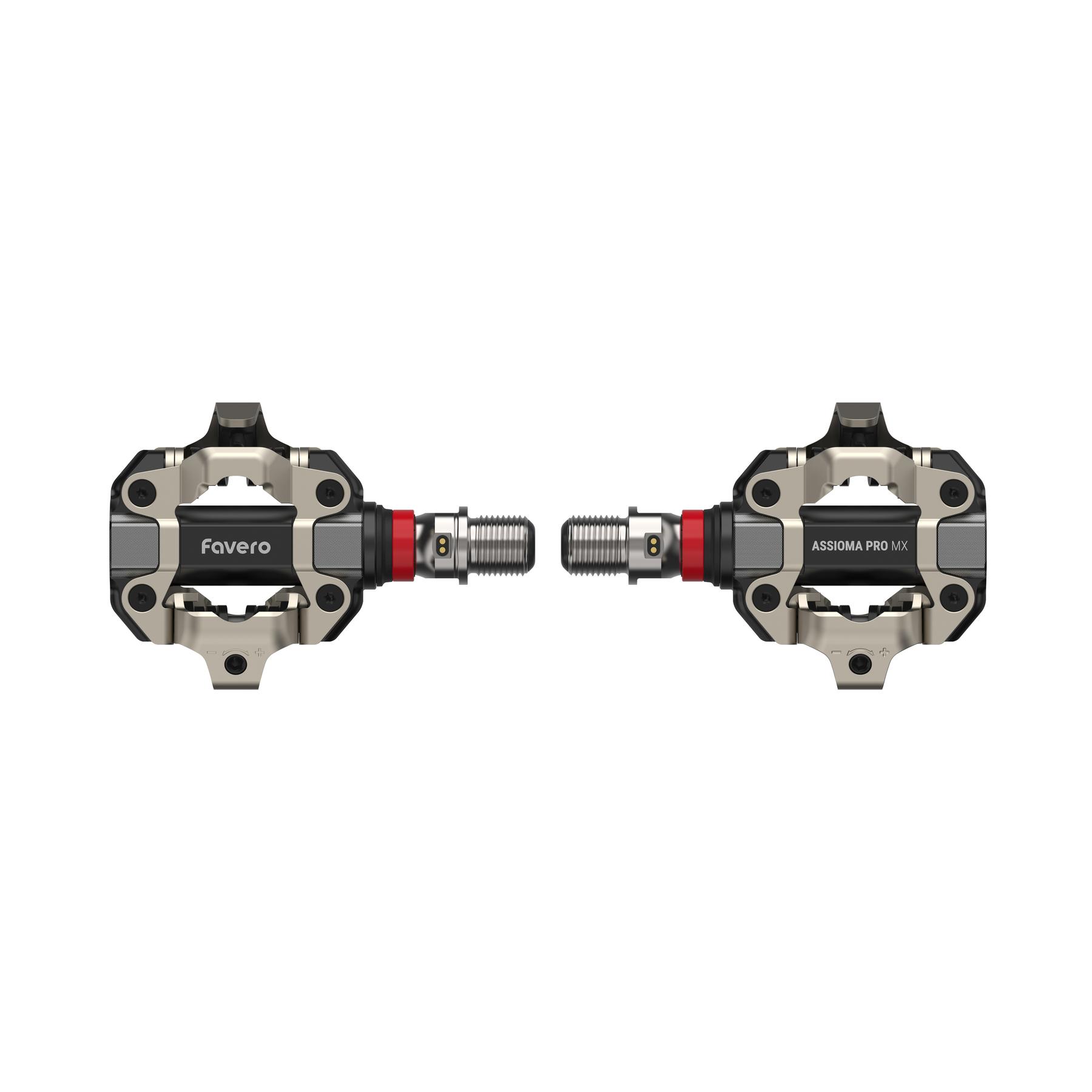

Pedals Assiamo PRO MX-2

Features:

Easy to install and universally compatible
The power sensor pedals Favero Assioma PRO MX-2 can be mounted and transferred from one bike to another just like any other pedals: in just a few minutes, without special tools and without the help of a mechanic.

Thanks to Bluetooth and ANT+ integration, they are also compatible with most bike computers and smartwatches on the market, as well as with major training apps like Zwift, Strava, Bkool, TrainerRoad, Rouvy, and many others.

A compact axle to protect the technology
All electronic components and the built-in rechargeable battery are completely enclosed in an extremely compact and sturdy axle.

The strategic positioning of the rechargeable battery and the absence of electrical contacts on the outside of the axle help avoid the annoying issues related to battery information loss, which are typical of replaceable batteries.
Moreover, the complete lack of a battery compartment or a cover to open or close prevents water, mud, and dust from entering, ensuring exceptional reliability even in adverse weather conditions.

The product is certified IP67.

Ultra-resistant to shocks and impacts
The pedal body made of 6061-T6 aluminium, extremely tough and ultra-light, is ready to take on the challenges of the toughest trails.
The locking system boasts a surface hardness of up to 800 HV, providing unprecedented shock resistance in the field of power sensors on pedals.

IAV Power System and data measured with Assioma PRO MX-2
Thanks to the special IAV Power System, Assioma measurements account for irregular pedal strokes (e.g., sprint, climbing) or the use of oval chainrings when calculating power, thus guaranteeing an accuracy of ± 1% in all conditions.

Assioma PRO MX-2 ensures extremely comprehensive data reading via ANT+ and Bluetooth.

Visible data:
• Power
• Cadence
• L/R balance
• PCO (Platform Centre Offset)
• PP (Power Phase)
• TE (Torque Effectiveness)
• PS (Pedalling Smoothness)
• RP (Sitting/Standing Position)

• Rechargeable and environmentally friendly
Assioma PRO MX uses built-in rechargeable batteries: a single charge ensures at least 60 hours of operation. The charging is done via a magnetic system, which avoids problems caused by accidental tugging on the charging cable.

• Made in Italy
Favero Electronics manufactures each power sensor at its headquarters in Italy and individually tests their performance through rigorous laboratory tests, far exceeding the standards set by current regulations.

Technical specifications:
• Left and right pedal power sensors for MTB and gravel
• Weight of the pedal with power sensor: 195.3 g
• L/R balance
• Cadence sensor: internal, integrated
• Gyroscope: internal, integrated
• Power calculation system: IAV (Instantaneous Angular Velocity-based)
• Pedalling analysis: yes
• Data accessible via ANT+ or Favero Assioma App:

• Power
• Cadence
• L/R balance
• PCO (Platform Centre Offset)
• TE (Torque Effectiveness)
• PP (Power Phase)
• PS (Pedalling Smoothness)
• RP (Sitting/Standing Position) not available on the Favero Assioma App

Data accessible via Bluetooth:

• Power
• Cadence
• L/R balance
• Compatible with oval chainrings: yes
• Battery: lithium, rechargeable
• Battery life: at least 60 hours
• Radio communication: ANT+, Bluetooth
• Power measurement accuracy: ± 1%
• Temperature compensation: yes
• Waterproof rating: IP67

• Stack height:

• Pedal stack height: 11.2 mm
• Shimano cleat height: 6.0 mm
• Total stack height: 17.2 mm

• Compatible cleats:

• cleats included (art. 773-00-62)
• Shimano® SM-SH51 cleats
• Shimano® SM-SH56 cleats

• Type of bike: MTB XC, CX, gravel
• Made in Italy
• Warranty: 2 years

Package content:
• Left pedal with power sensor
• Right pedal with power sensor
• Compatible SPD® MTB cleat kit
• 4 washers
• Magnetic connector (2x MX-2 | 1x MX-1)
• 1 Y Charging Cable
• 1 Greasing Kit
• 1 Warranty and Safety Manual
• 1 Welcome Brochure
