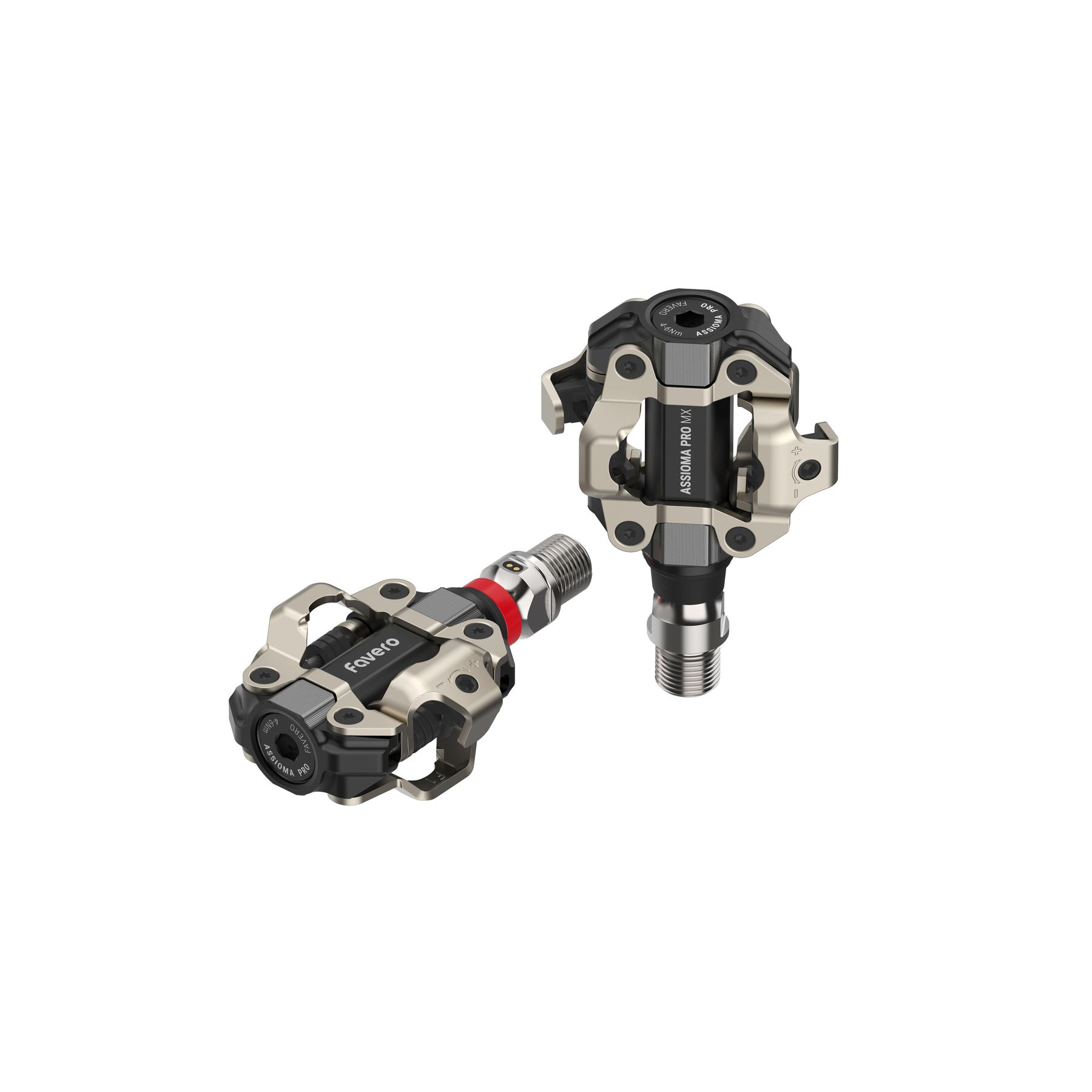

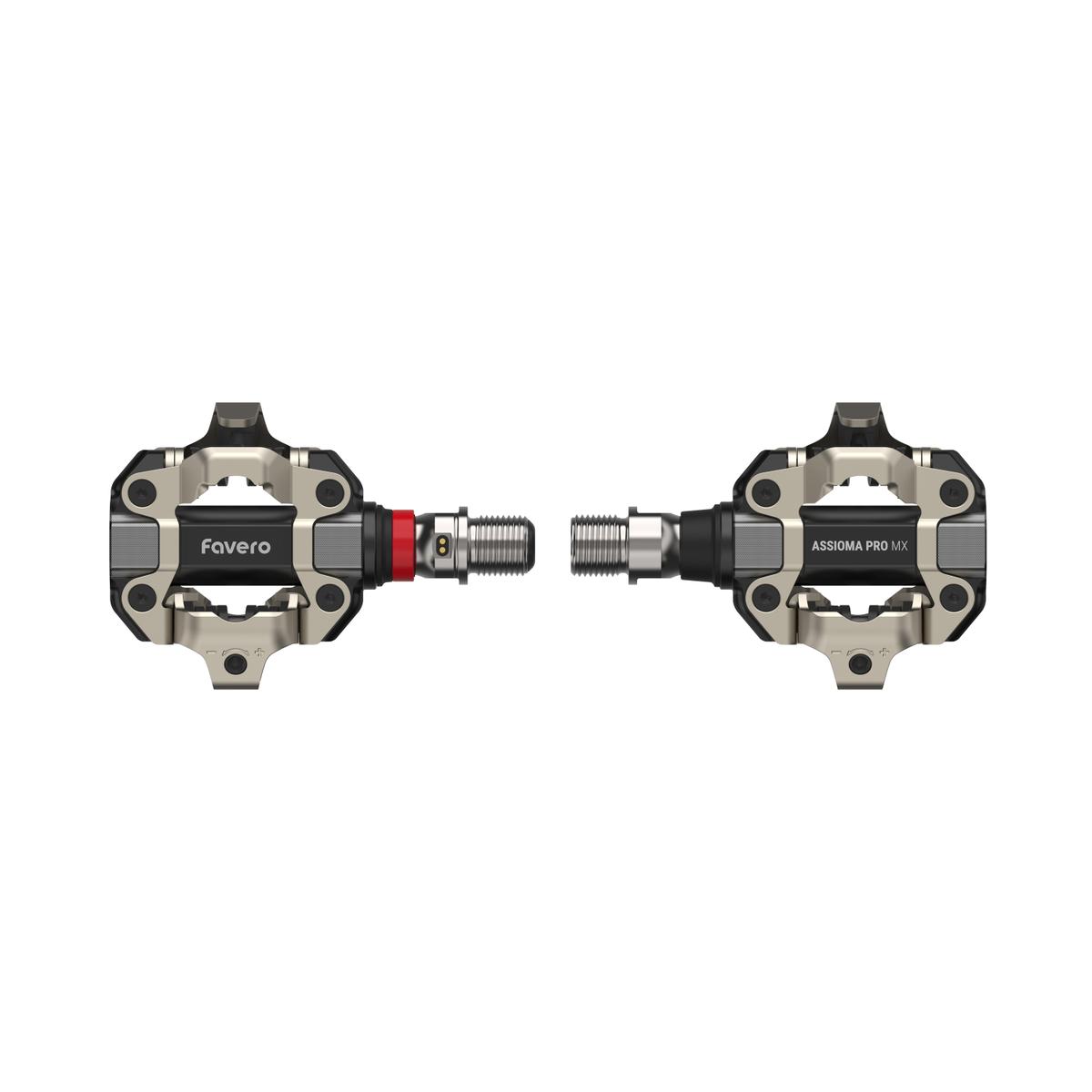

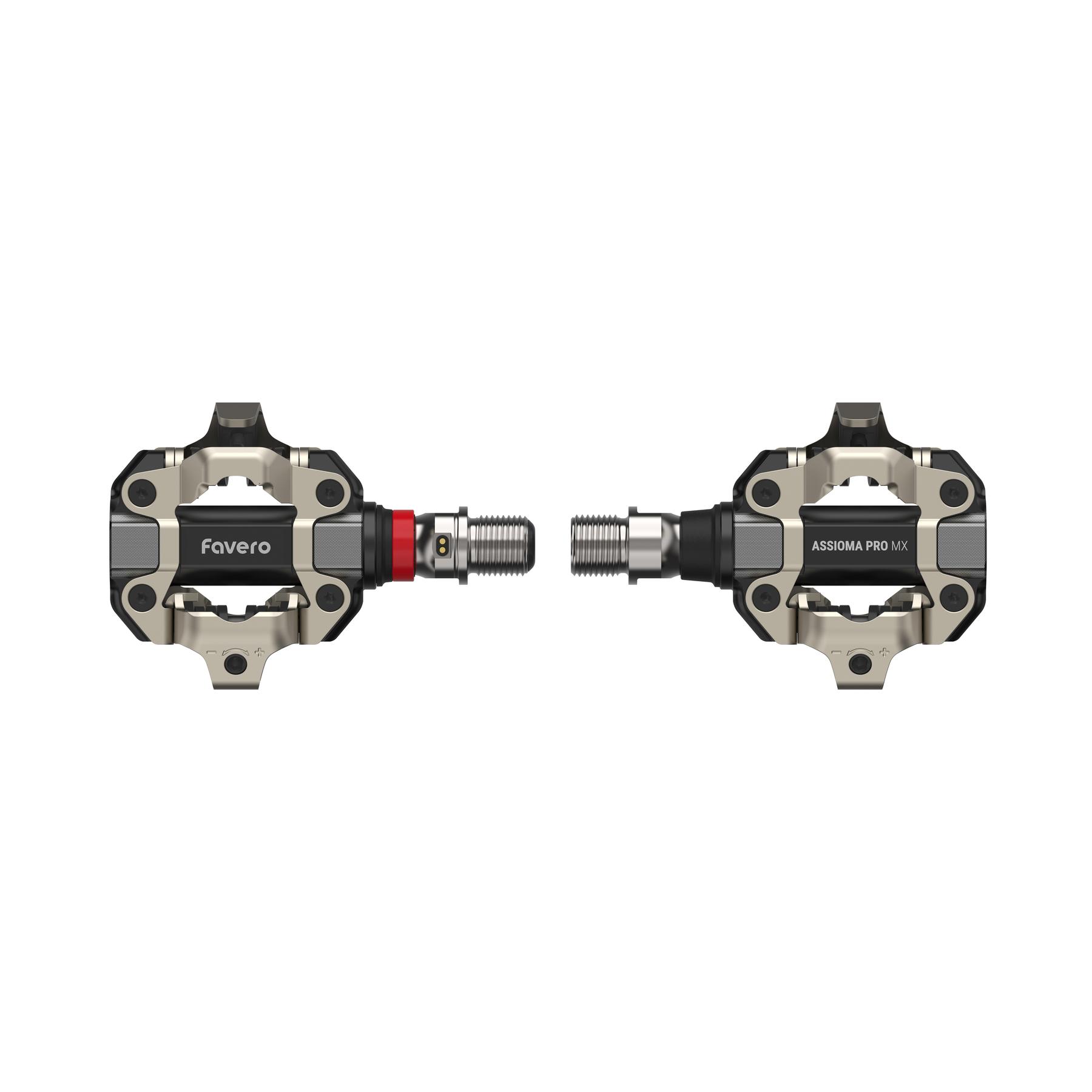

Assioma PRO MX-1 Pedals

Features:
Easy to install and universally compatible
The power sensor pedals Favero Assioma PRO MX-1 can be mounted and transferred from one bike to another just like any other pedals: in just a few minutes, without special tools and without the help of a mechanic.

With Bluetooth and ANT+ integration, they are also compatible with most bike computers and smartwatches on the market, as well as major training apps like Zwift, Strava, Bkool, TrainerRoad, Rouvy and many others.

A compact axle to protect the technology
All the electronic components and the integrated rechargeable battery are completely enclosed within an extremely compact and sturdy axle.

The strategic positioning of the rechargeable battery and the absence of electrical contacts on the outside of the axle help avoid the annoying issues of information loss related to batteries, which are typical with replaceable batteries.
Moreover, the complete absence of a battery compartment or a cover to open or close prevents water, mud and dust from entering, ensuring exceptional reliability even in adverse weather conditions.

The product is certified IP67.

Ultra-resistant to shocks and impacts
The 6061-T6 aluminium pedal body, extremely robust and ultralight, is ready to take on the challenges of the toughest trails.
The attachment system has a surface hardness of up to 800 HV, providing unprecedented shock resistance in the field of power sensors on pedals.

IAV Power system and data measured with Assioma PRO MX-1
Thanks to the special IAV Power System, Assioma's measurements take into account irregular pedal strokes (such as sprints, climbs) or the use of oval chainrings when calculating power, ensuring an accuracy of ± 1% under all circumstances.

Assioma PRO MX-1 guarantees an extremely comprehensive data reading via ANT+ and Bluetooth.

Visible data:
• Power
• Cadence
• PCO (Platform Center Offset)
• PP (Power Phase)
• TE (Torque Effectiveness)
• PS (Pedal Smoothness)
• RP (Sitting/Standing Position)

• Rechargeable and environmentally friendly
Assioma PRO MX uses integrated rechargeable batteries: a single charge ensures at least 60 hours of operation. Charging is done through a magnetic system, which prevents issues caused by accidental tugging on the charging cable.

• Made in Italy
Favero Electronics manufactures each power sensor at its headquarters in Italy and individually tests their operation through rigorous lab tests, fully meeting the standards set by current regulations.

Technical specifications:
• Power sensor only on the left pedal for MTB and gravel
• Weight of the pedal with power sensor: 195.3 g
• Cadence sensor: internal, integrated
• Gyroscope: internal, integrated
• Power calculation system: IAV (Instantaneous Angular Velocity-based)
• Pedal analysis: yes
• Data available via ANT+ or Favero Assioma App:

• Power
• Cadence
• PCO (Platform Center Offset)
• TE (Torque Effectiveness)
• PP (Power Phase)
• PS (Pedal Smoothness)
• RP (Sitting/Standing Position) not available on the Favero Assioma App
• Data available via Bluetooth:

• Power
• Cadence
• Compatible oval chainring: yes
• Battery: lithium, rechargeable
• Battery life: at least 60 hours
• Radio communication: ANT+, Bluetooth
• Power measurement accuracy: ± 1%
• Thermal compensation: yes
• Waterproof rating: IP67

• Support height:
• Pedal stack height: 11.2 mm
• Shimano cleat height: 6.0 mm
• Total stack height: 17.2 mm

• Compatible cleats:
• cleats provided (art. 773-00-62)
• Shimano® SM-SH51 cleats
• Shimano® SM-SH56 cleats

• Type of bike: MTB, XC, CX, gravel
• Made in Italy
• Warranty: 2 years

Package contents:
• Left pedal with power sensor
• Right pedal without power sensor
• Compatible SPD® MTB cleat kit
• 4 washers
• Magnetic connector (2x MX-2 | 1x MX-1)
• 1 Y charging cable
• 1 Lubrication kit
• 1 Warranty and safety manual
• 1 Welcome brochure
