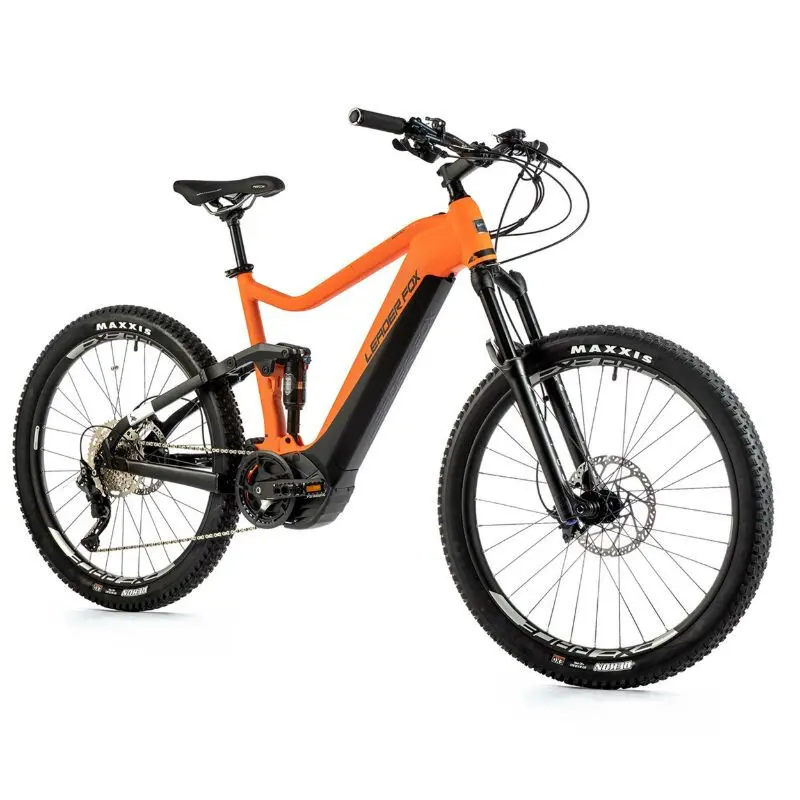

Panasonic gx ultimate mid-mount electric bike Arran 2023 36V 90Nm 20Ah

Fork Manitou Machete travel 130 mm (air) (29" model)
Fork Manitou Machete travel 120 mm (air) (27.5" model)
Suspension Manitou Mara 190 x 45 mm (air)

The clear LCD screen displays the following features:
- Three assistance modes + automatic mode
- WALK function (walking speed, useful for example when cycling up a steep hill)
- Display of current, maximum and average speeds
- Distance covered : individual trips/total distance
- Day and night modes (backlit display)
- Battery charge indicator

E-bike autonomy depends on many factors: rider weight and load, rider fitness, style and nature of ride, technical condition of bike, temperature, wind direction and strength, altimeter profile of route, and terrain characteristics (rough or hilly terrain, frequent departures, etc.)., which reduce autonomy).

16 and 17.5 frames are not equipped with telescopic stems.
*Subject to modification of components by the supplier.

• Nom Product: vae

• Nom Related Product: velo a assistance electrique

• Product Use: mountain bike

• Type : central motor

• Product Model : arran 2023

• Identity : man

• Color : orange neon

• Frame: aluminum suspension

• Universal size: 16" - h42 - size s (for adults 158 cm to 168 cm)

• Net Weight: 27.5 kg - max load 120kg

• Number Of Speeds: 10 v (11-46)

• Charger : 42 v - 3 ah

• Product subfamily: vae

• Product family : complete bikes (velo)

• Packaging : (sold atunite)

• Battery Theoretical range : 100 to 130km

• Battery Position : integrated into frame

• Motor Power/Torque : 250w - 90nm

• Motor Position : central

• Tires: 27.5 x 2.60

• Handlebars: half-lift 31.8mm

• Stem: adjustable

• Brakes: hydraulic disc (shimano deore)

• Crankset: mono 38dts

• Transmission: shimano deore - push-pull shifter

• Forks: adjustable suspension with lockout feature

• Wheels: 27.5" thru axles 15x100 and 12x148mm

• Product Version: 27.5

• Motor Make/Model: panasonic gx ultimate

• Battery Voltage/Intensity: 36 v - 20 ah - 720 wh

• Display/Ecran : panasonic - tft couleur
